Glass fiber packing
For different sizes, current stock or more information, please contact us at: +359888888094; elektrabg@abv.bg
Description

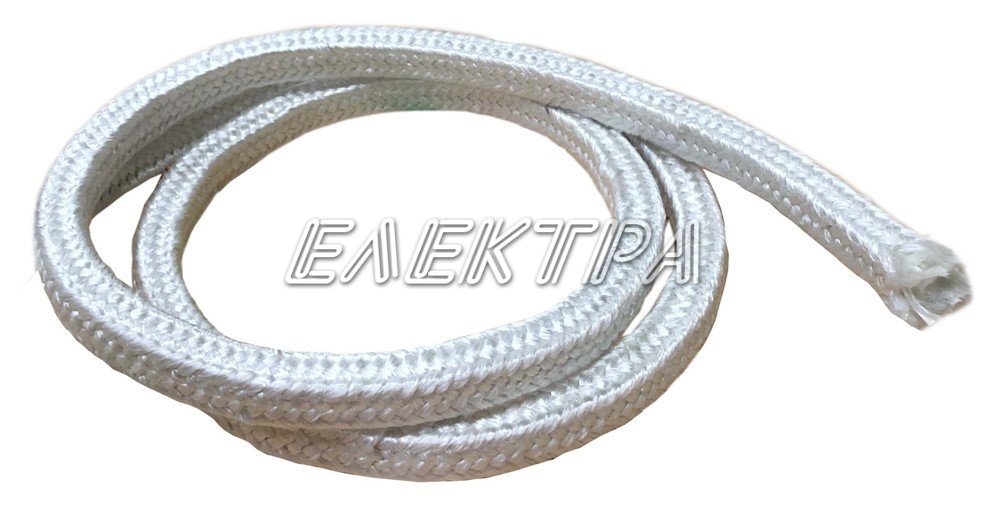

Glass fiber packing is woven from glass yarn and can be either round or square in cross-section. The glass packing has high heat resistance thanks to its threads, and its high flexibility brings excellent sealing qualities. The glass braided packing features both extremely long life and high tensile strength. In addition glass braided packing doesn’t shrink which guarantees its stability and maintained performance. It can be used without limitation when working with steam, inert gases, limited solvents. Glass fiber packing has a great maximum temperature resistance compared to other compression packings, but lacks maximum temperature in comparison with square ceramic packing, which resists more than 1000 °С under peak loads.
Areas of application
- the seals of valves and pumps
- flanged joints
- insulation of steam pipes, boilers, fittings
- seals in various assemblies of machines and units
- furnaces, fans and ovens
- static sealing of covers, hatches
- water supply systems
- paint shops
- water transport
- textile industry
- chemical industry
- the food industry
- the oil refining industry
- energy industry
- the metallurgical industry
- others
Stock
| Size | Package weight (kg) |
| 4×4 | 1 |
| 5×5 | 1 |
| 6×6 | 1 |
| 8×8 | 1 |
| 10×10 | 1 |
| 12×12 | 3 |
| 14×14 | 3 |
| 16×16 | 3 |
| 18×18 | 3 |
| 20×20 | 3 |
| 22×22 | 5 |
| 24×24 | 5 |
| 26×26 | 5 |
| 28×28 | 5 |
| 30×30 | 5 |
| 32×32 | 10 |
| 34×34 | 10 |
| 36×36 | 10 |
| 38×38 | 10 |
| 40×40 | 10 |
Specifications
| Properties | Unit | Value |
| Colour | – | natural |
| Working temperature | °С | +500 |
| Maximum working temperature | °С | +550 |
| рН | 4-11 |
